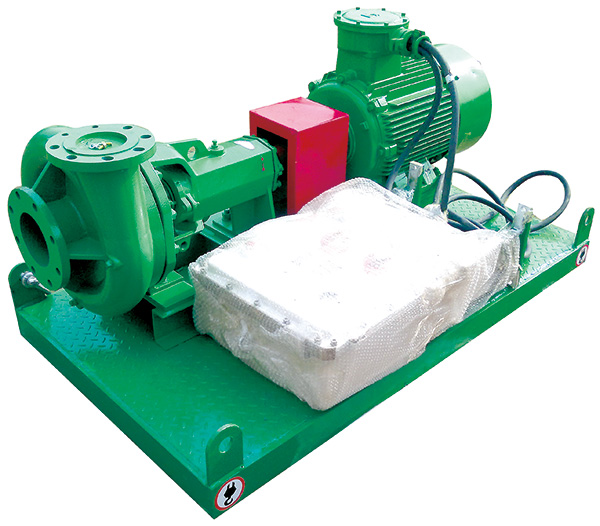

Centrifugal Pump

Centrifugal pump is widely used in solids control system. Internal the mud system, It can be located before the de-sander, de-silter and mud cleaner to transfer the drilling mud to the cyclone unit, equipped to the jut mud mixer unit as the mud mixing pump
  • Description

    Centrifugal pump is widely used in solids control system. Internal the mud system, It can be located before the de-sander, de-silter and mud cleaner to transfer the drilling mud to the cyclone unit, equipped to the jut mud mixer unit as the mud mixing pump. For external of the mud system, the centrifugal pump can be used as the trip pump for mud supplement under well and the supercharging pump to transfer the drilling fluids to high pressure rig mud pump. The solids contained in drilling fluids request the centrifugal pump wet contacting parts with excellent wear resistance and high efficiency on flow rate. Based on the material adopted and structure design, GN centrifugal pump provide users solution for both aforementioned problems. Furthermore, the spare parts of GN centrifugal pump are interchangeable with international brand pump for customers’ parts sourcing convenience.



    GN Centrifugal Pump Features and Advantages

    Material Adoption

    • Pump casing made from hard ductile iron alloy, increased abrasion resistant capability
    • Pump impeller made from hard ductile iron alloy, extended lifetime
    • High quality no-adjustment mechanical seal to provide zero leakage and longer operation life.
    • All bearings used from top brand for reliable operation.

    Structure Design

    • Thick, Strong Concentric casing provides extended life over conventional volute designs. The Concentric design minimizes turbulence and abrasive wear.
    • Wide open-vane impeller creates lower axial thrust for improving bearing life, easy for installation and maintenance.
    • Anti-loosening impeller lock bolt to eliminate pump damage in case of improper motor hook-up.
    • Replaceable shaft sleeve prevents shaft wear.
    • The mounting skid is casted rather than welded to provide reliable supporting and less vibration so that to extend the pump and motor life.

    Centrifugal Pump Brochure Download



    Centrifugal Pump Parameter

    ModelFlow(m³/h)Lift(m)Power(Kw)Motor Speed(RPM)Impeller(Inch)
    GNSB8×6C-14J 320m3/h 35m 75kW 1450RPM(50Hz) 14in
    GNSB8×6C-12J 1750RPM(60Hz) 12in
    GNSB8×6C-13J 272m3/h 35m 55kW 1450RPM(50Hz) 13in
    GNSB8×6C-11J 1750RPM(60Hz) 11in
    GNSB6×5C-13J 200m3/h 35m 45kW 1450RPM(50Hz) 13in
    GNSB6×5C-10J 1750RPM(60Hz) 10in
    GNSB6×5C-12J 150m3/h 30m 37kW 1450RPM(50Hz) 12in
    GNSB6×5C-9.5J 1750RPM(60Hz) 9.5in
    GNSB5×4C-13J 120m3/h 35m 30kW 1450RPM(50Hz) 13in
    GNSB5×4C-11J 1750RPM(60Hz) 11in
    GNSB5×4C-12J 90m3/h 30m 22kW 1450RPM(50Hz) 12in
    GNSB5×4C-10J 1750RPM(60Hz) 10in
    GNSB4×3C-13J 65m3/h 35m 18.5kW 1450RPM(50Hz) 13in
    GNSB4×3C-12J 1750RPM(60Hz) 12in
    GNSB4×3C-12J 55m3/h 28m 15kW 1450RPM(50Hz) 12in
    GNSB4×3C-10J 1750RPM(60Hz) 10in
    GNSB4×3C-11J 45m3/h 25m 11kW 1450RPM(50Hz) 11in
    GNSB4×3C-9.5J 1750RPM(60Hz) 9.5in
